使用外部接口

View 通过 WSO2 请求第三方系统 API

1.创建Api

打开 Api 管理页面并登录: https://localhost:9443/publisher
账号: admin
密码: admin

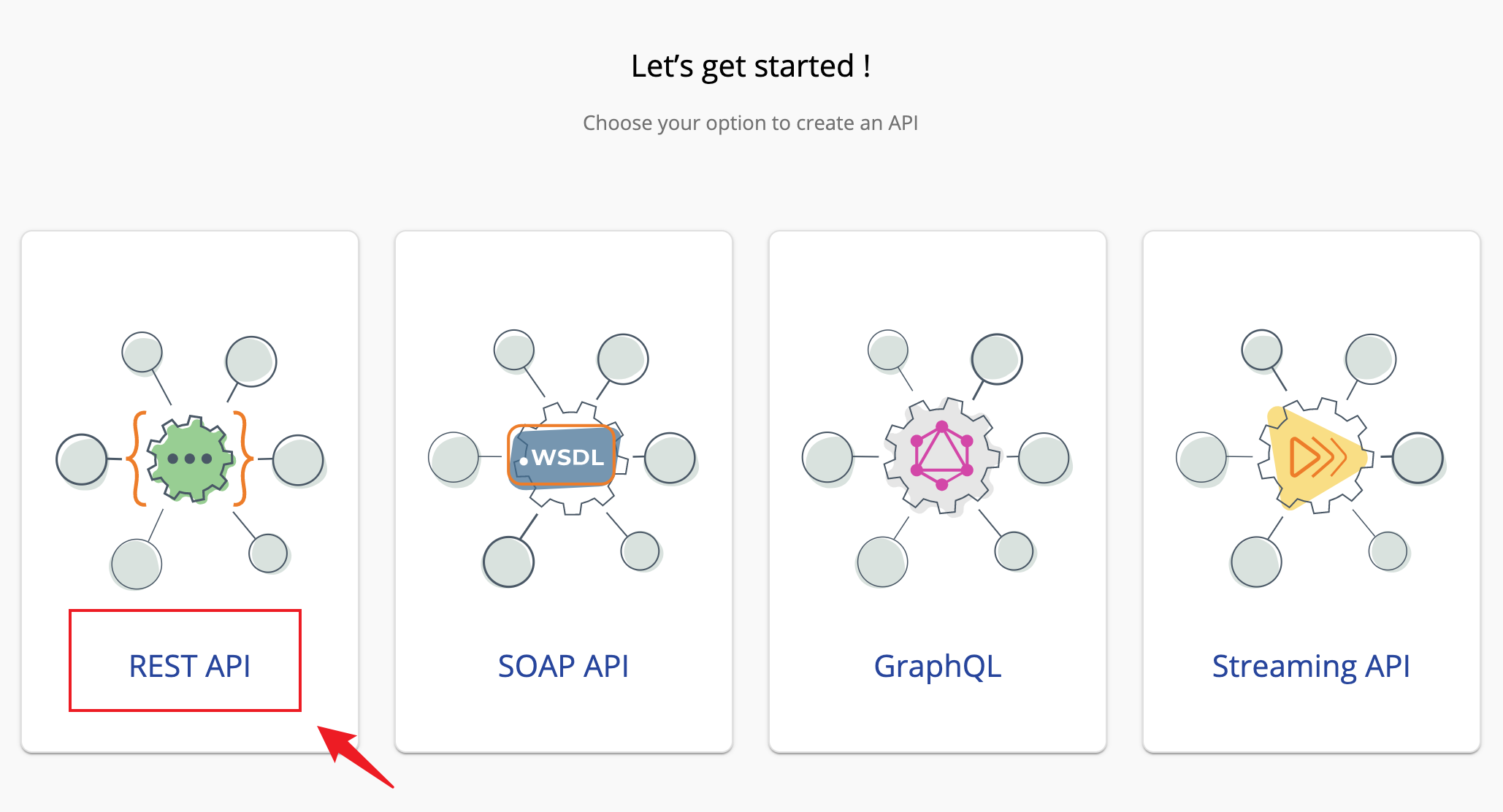

选择【REST API】类型的接口

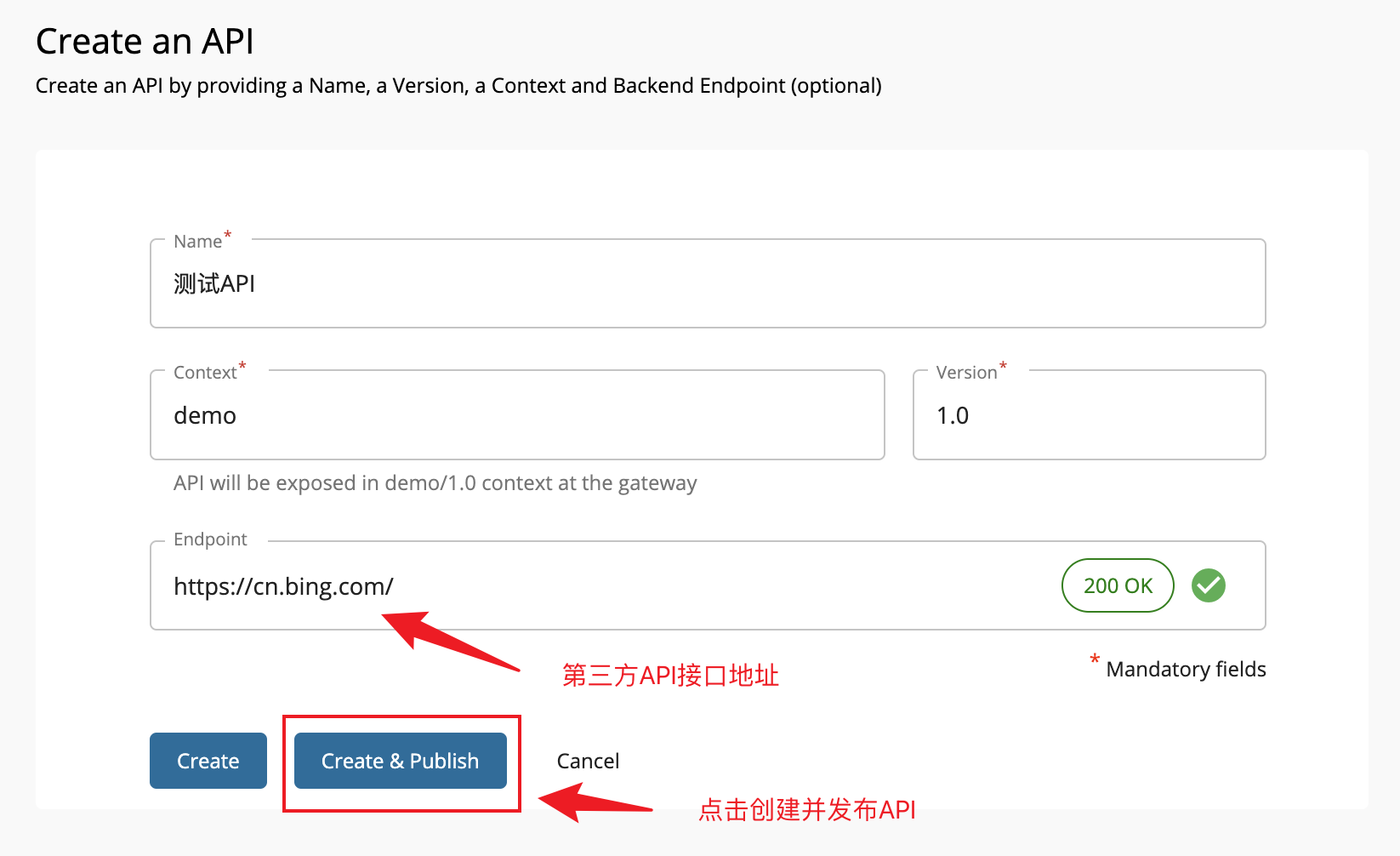

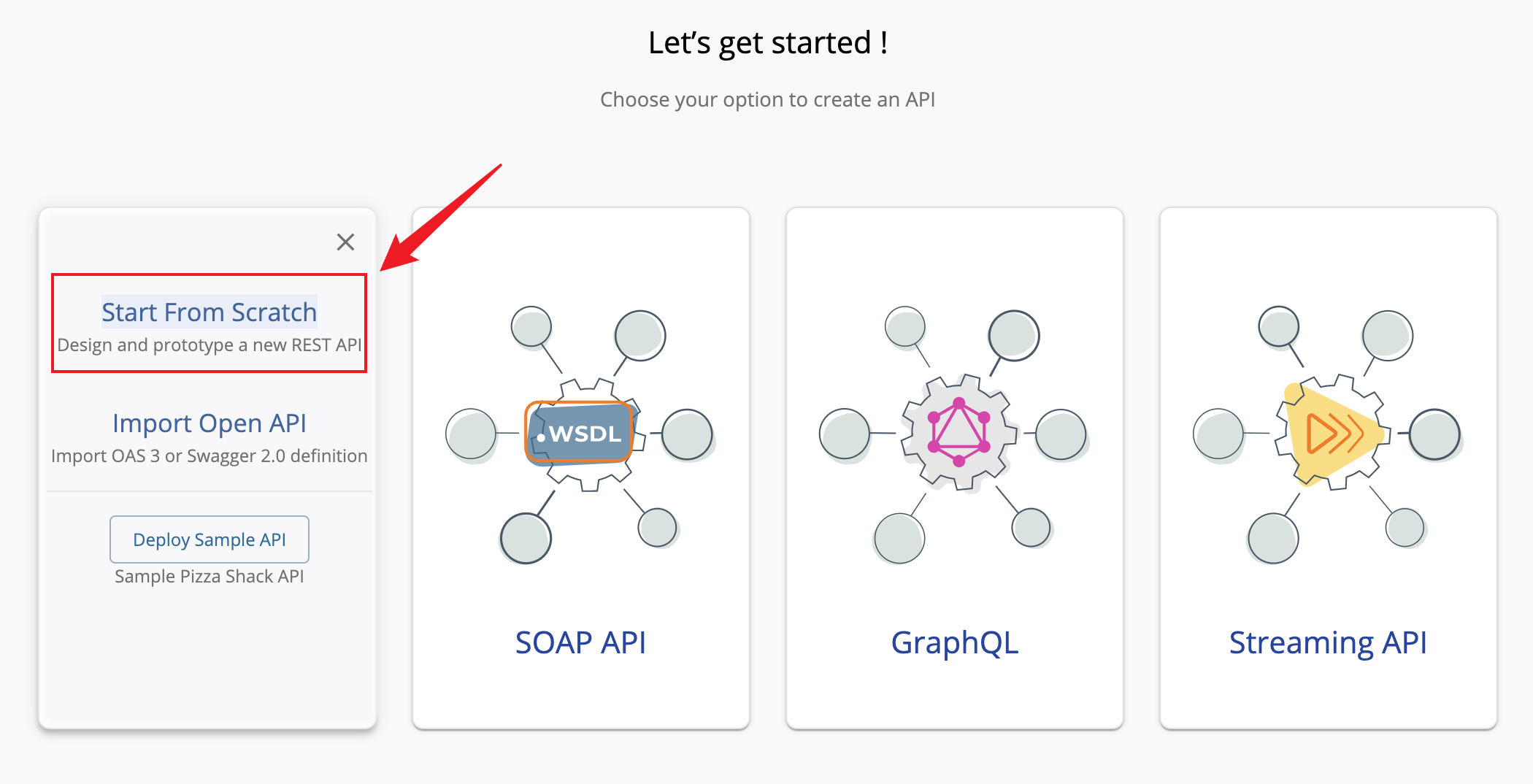

点击【Start From Scratch】 创建新的 API 填入接口信息

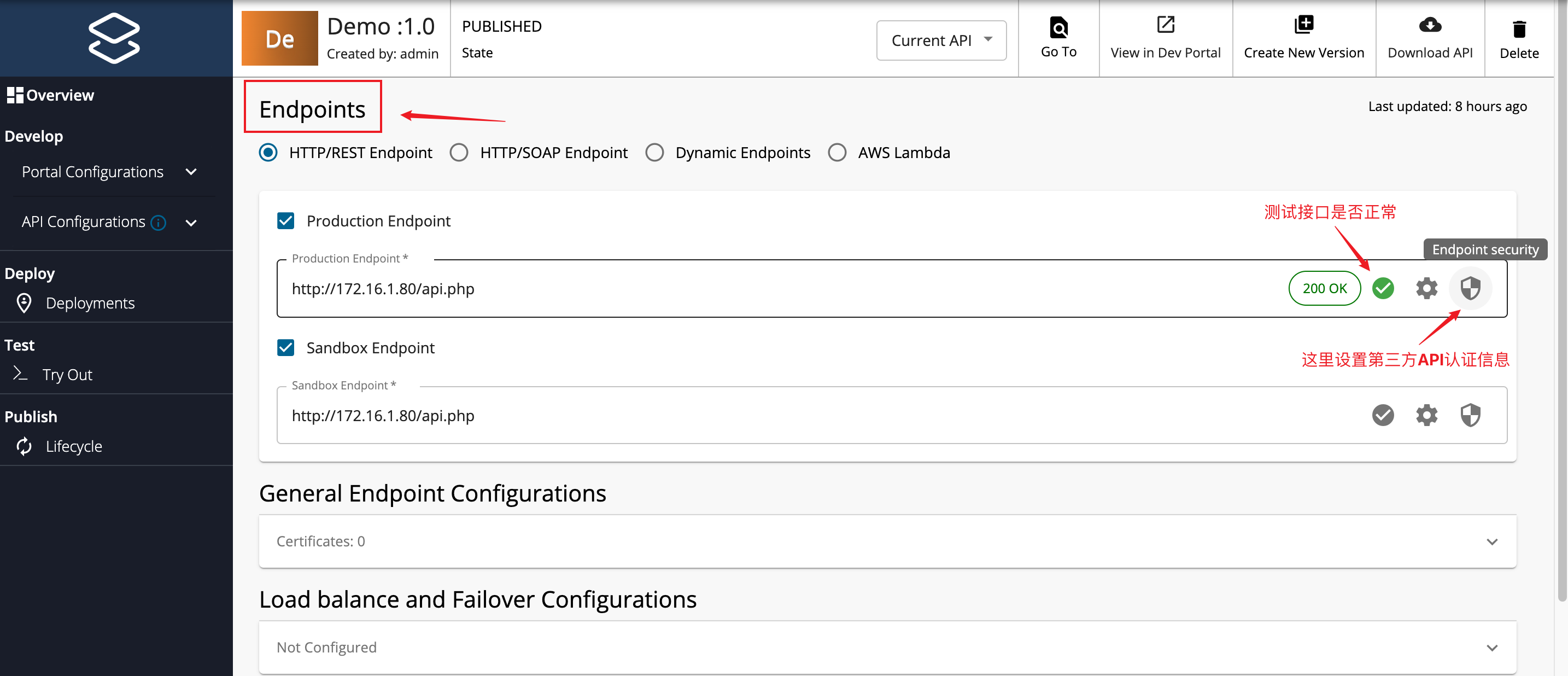

配置第三方接口的认证信息

2.创建App

打开 App 管理页面: https://localhost:9443/devportal/applications

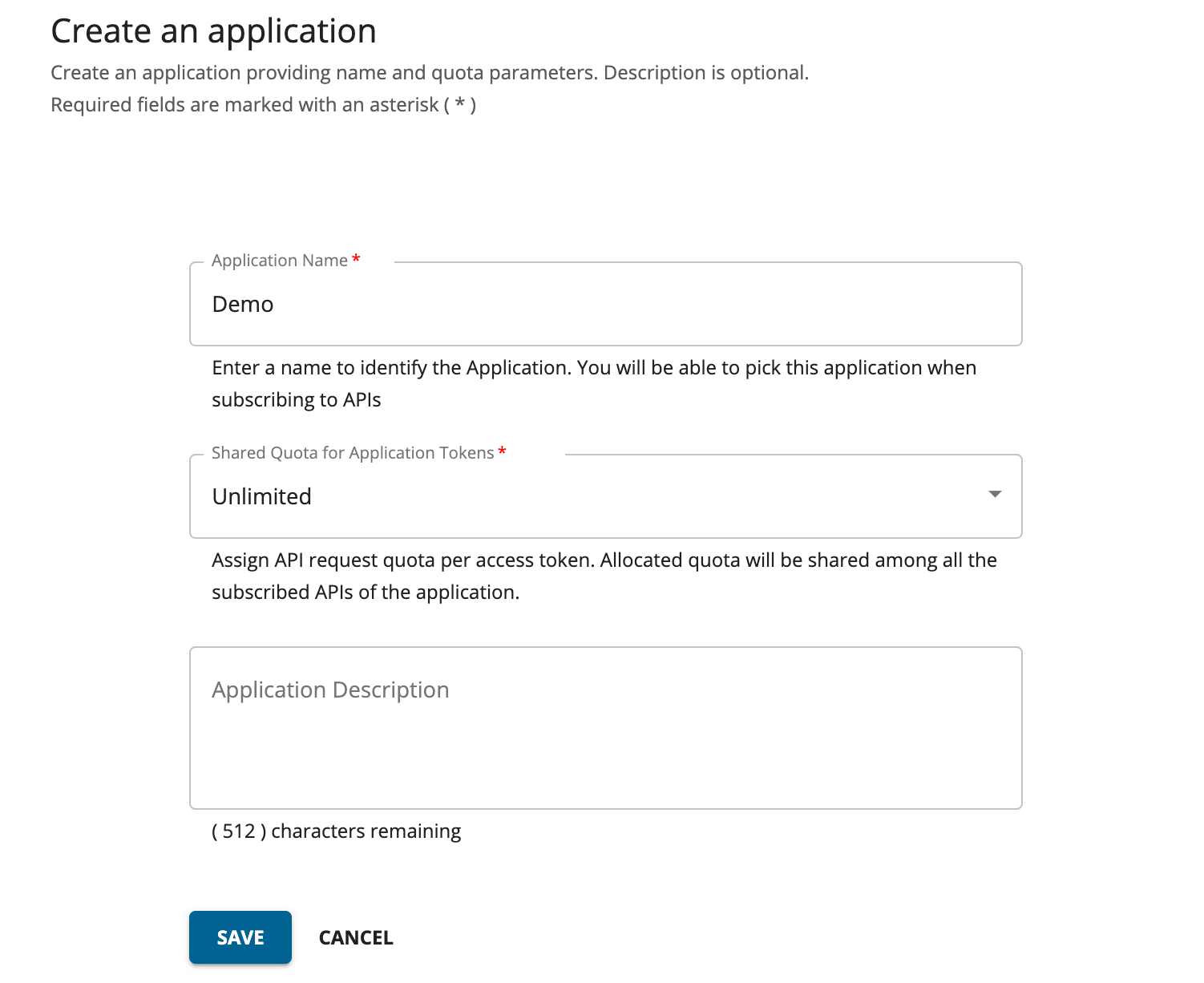

点击【ADD NEW APPLICATION】按钮 填入信息并保存

3.生成OAuth认证密钥

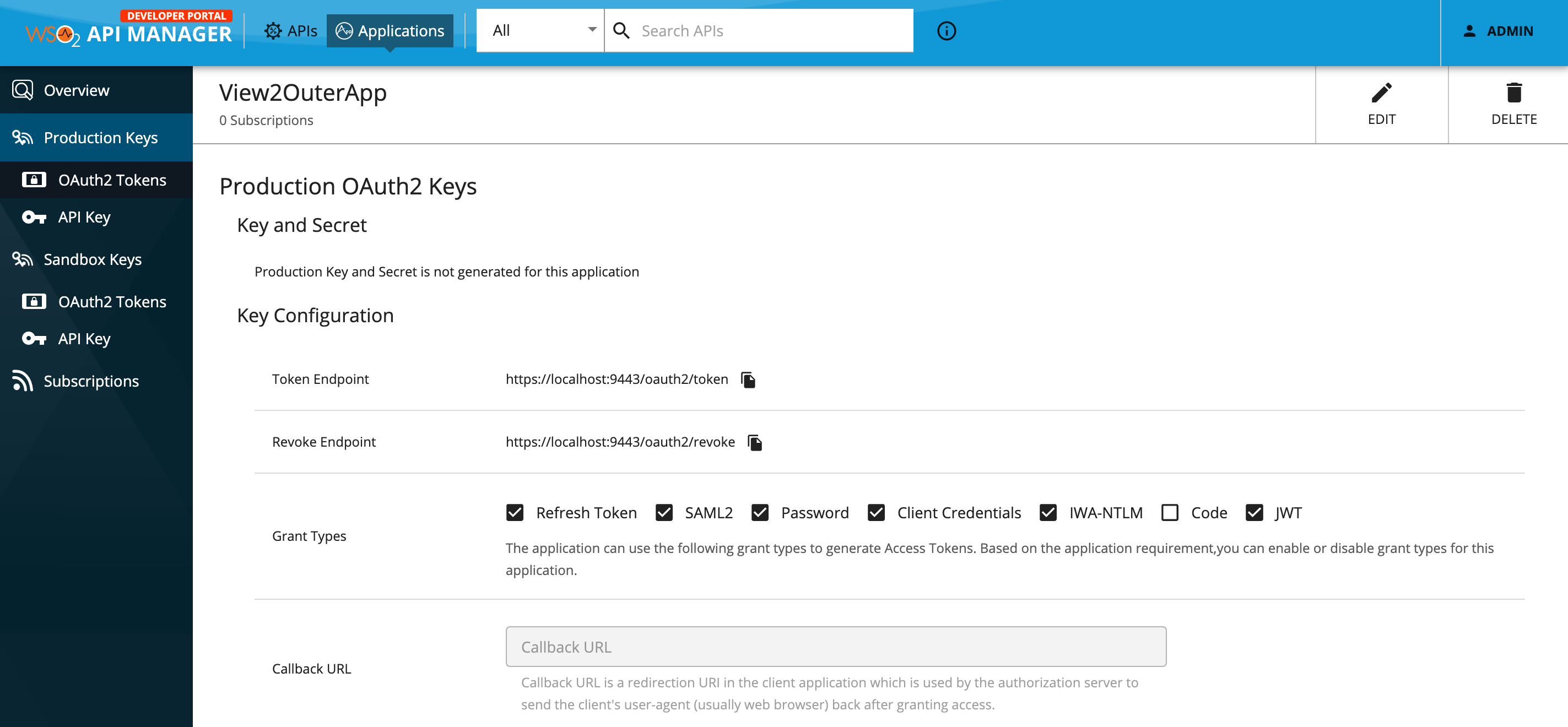

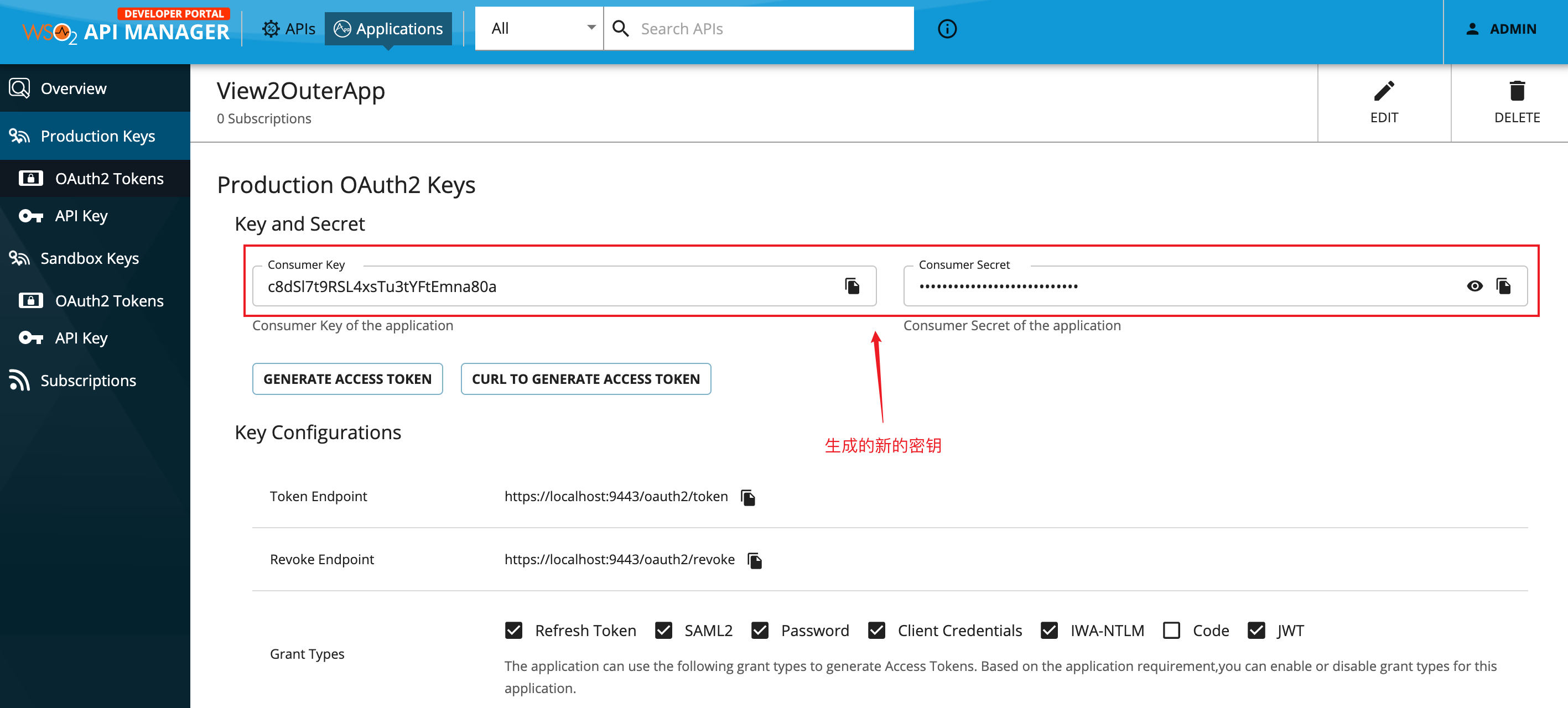

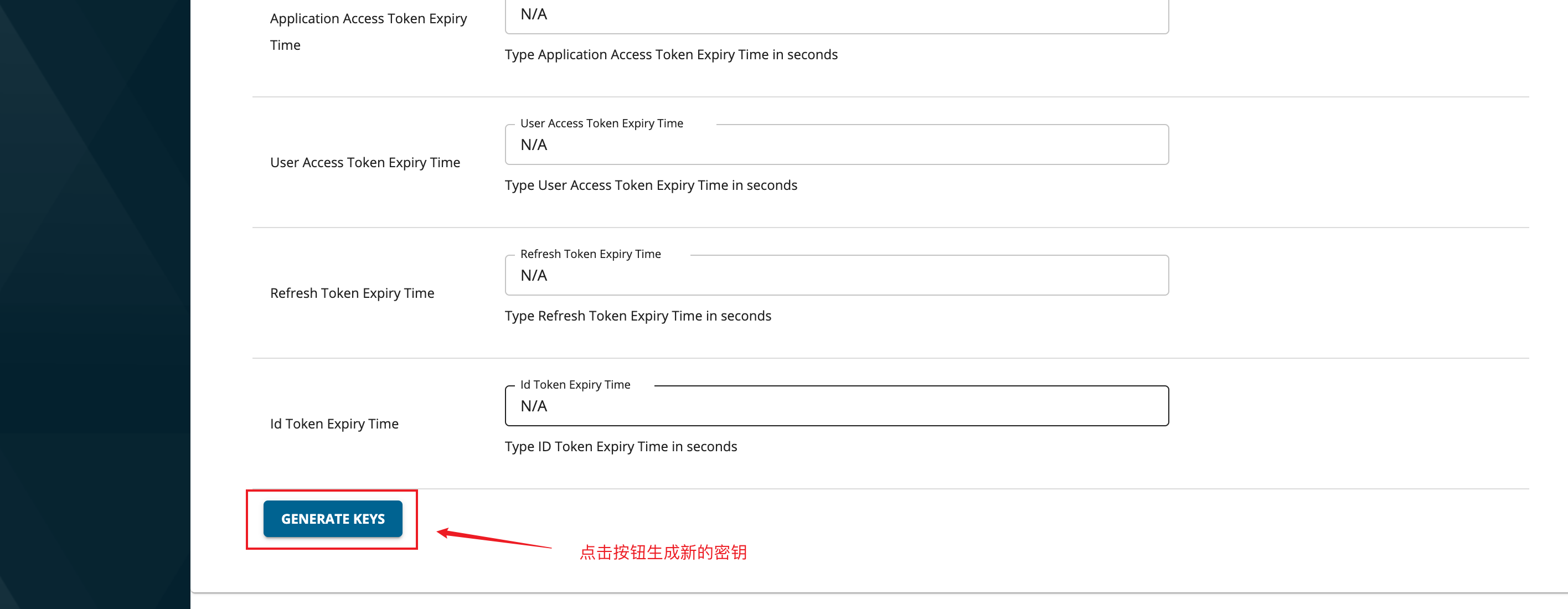

切换到【Oauth2 Tokens】菜单栏 点击【GENERATE KEYS】生成新的认证密钥 查看新生成的密钥信息

4.绑定Api和App

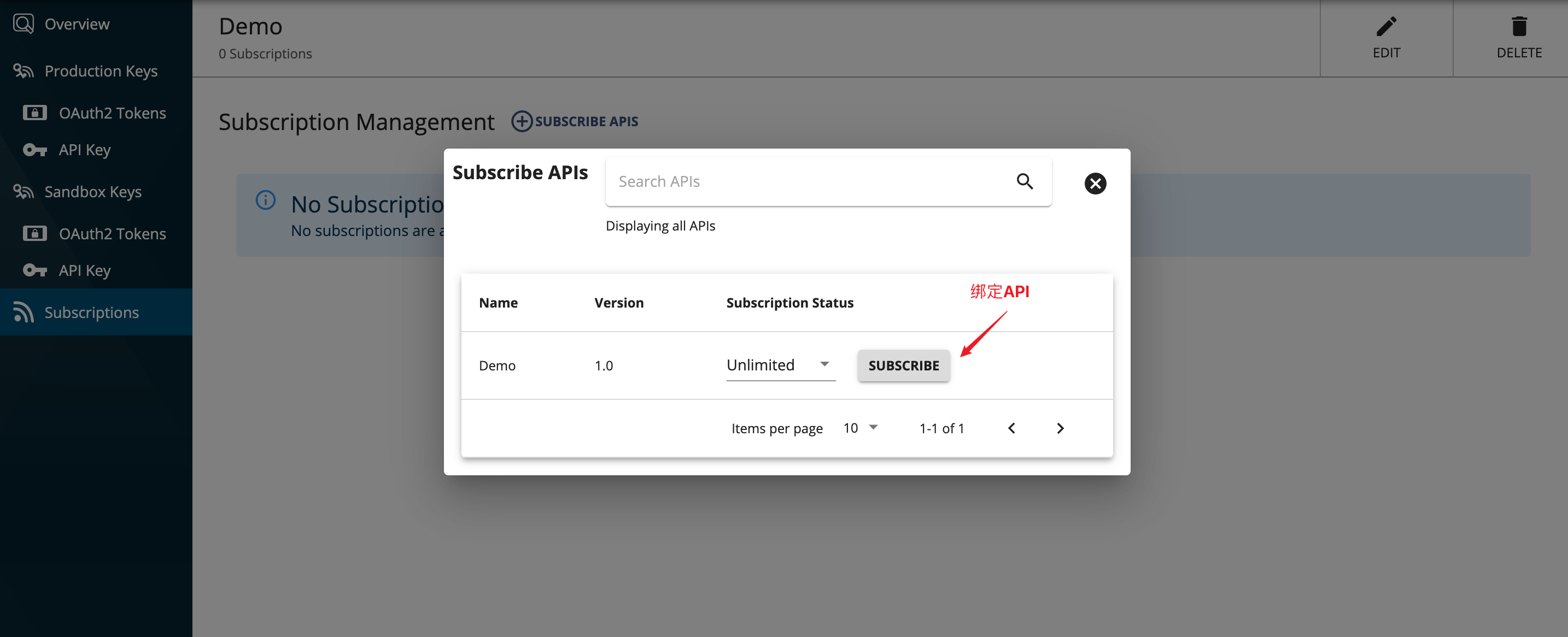

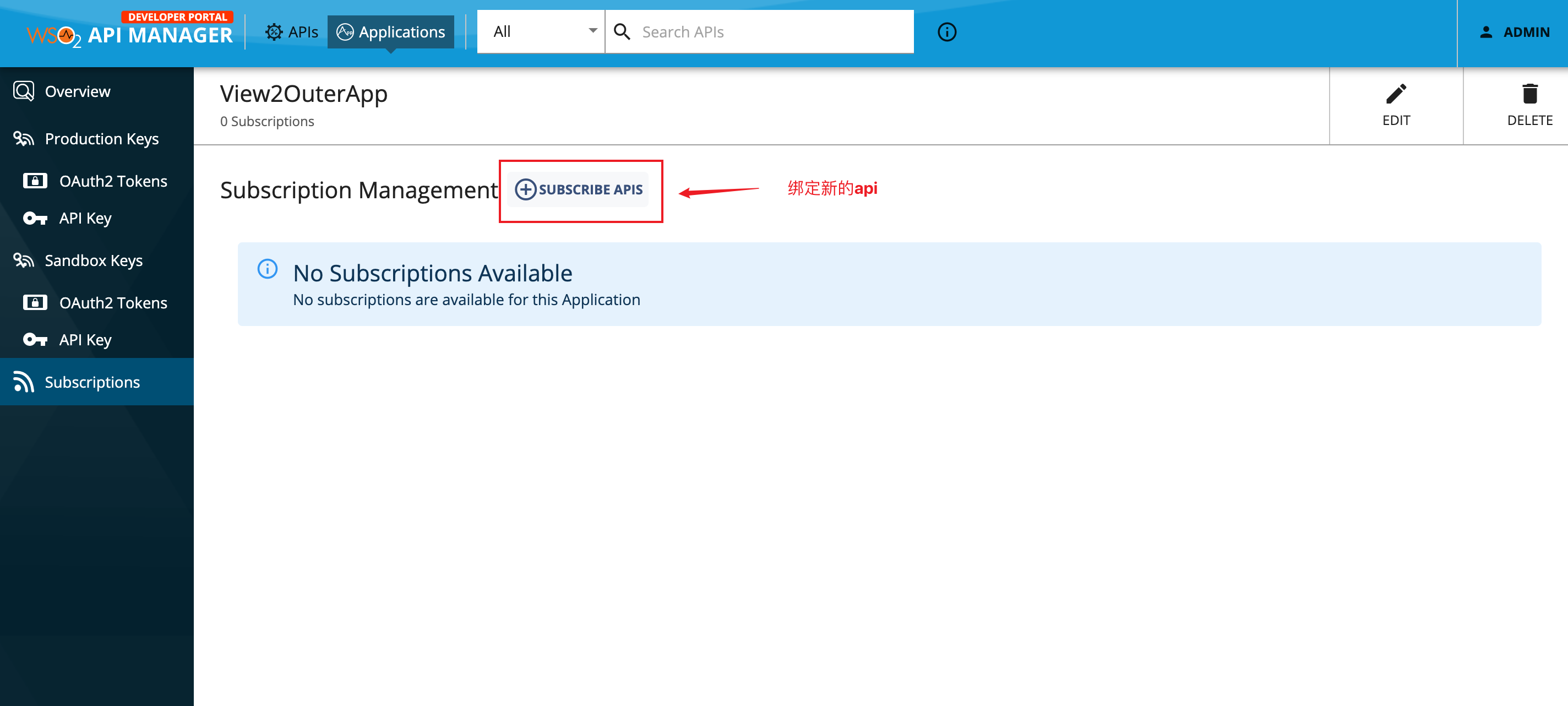

切换到【Subscriptions】菜单栏,然后点击页面上的【+SUBSCRIBE APIS】按钮 在弹出的页面中选择需要绑定的API,点击【SUBSCRIBE】按钮

5.在View中使用

添加配置信息

在项目的 core 文件夹下新建一个名为: .restfulapi.authentication.ini 的文件(文件名以'.'号开始),并复制粘贴以下内容。

ini
;配置项名称
[APPLICATION_DEMO]
;WSO2的OAuth认证接口
gatewayAuthUrl="https://172.16.1.94:9443/oauth2"
;WSO2的Oauth帐号信息
consumerKey="Gyf9T2mZRqiyC7z7kw8_g8ngxnoa"
consumerSecret="Xh6_eLPWaPBbUMfkUld72GG6JL4a"
;WSO2中的API接口地址
gatewayRecourceUrl="https://172.16.1.94:8243"
  • 配置项名称对应 Application 的名称
  • consumerKey 对应 OAuth2 的 Consumer KeyConsumer Secret

发送请求

在项目中新建一个 web/wso2.php 的测试文件,并复制粘贴以下代码。

php
<?php

const NO_USER_REQUIRED       = true;
const NO_PERMISSION_REQUIRED = true;

require_once("{$_SERVER['DOCUMENT_ROOT']}/../sys/libs/init.lib");
require_once("{$_SERVER['DOCUMENT_ROOT']}/../sys/libs/logic/Util/Gateway/ViewGateway.lib");

use VIEW\Util\Gateway\ViewGateway;

// .ini文件中的配置项名称
const CONFIG_NAME = 'APPLICATION_DEMO';
// API名称
const API_NAME = 'Demo';
// API路径(context)
const API_URI = '/demo';
// API版本
const API_VERSION = '1.0';

try {
    $viewGateway = new ViewGateway(CONFIG_NAME, "");

    // 发送请求
    $result = $viewGateway->post(API_NAME, [], 0, null, null, API_VERSION, true, 2, API_URI);

    if (empty($result)) {
        // 接口请求失败,记录日志
    }
} catch (Exception $e) {
    var_dump($e);
}

处理响应

创建处理文件: sys/libs/logic/Util/Gateway/Handler/DemoGatewayBizHandler.php

文件命名规范:<App名称>GatewayBizHandler.php

php
<?php

namespace VIEW\Util\Gateway\Handler;

require_once("{$_SERVER['DOCUMENT_ROOT']}/../sys/libs/curl_api_adapter/curl.lib");
require_once("{$_SERVER['DOCUMENT_ROOT']}/../sys/libs/view_exceptions/autoloader.php");
require_once(SYSTEM_DIR . '/libs/logic/external_access_logger/bo/ExternalAccessLogger.lib');
require_once SYSTEM_DIR . '/libs/jwt_wrapper/autoloader.php';

use VIEW\Util\Gateway\ViewGatewayBizHandlerBaseService;

class DemoGatewayBizHandler extends ViewGatewayBizHandlerBaseService
{
    /**
     * Demo
     *
     * @param $applicationName
     * @param $apiName
     * @param $requestMethod
     * @param $requestData
     * @param $version
     * @param $retutrnValue
     * @param $identifier
     */
    public function onFinish($applicationName, $apiName, $requestMethod, $requestData, $version, $retutrnValue, $identifier)
    {
        var_dump($retutrnValue);
        parent::onFinish($applicationName, $apiName, $requestMethod, $requestData, $version, $retutrnValue, $identifier);
    }
}

6.接口调试

获取AccessToken

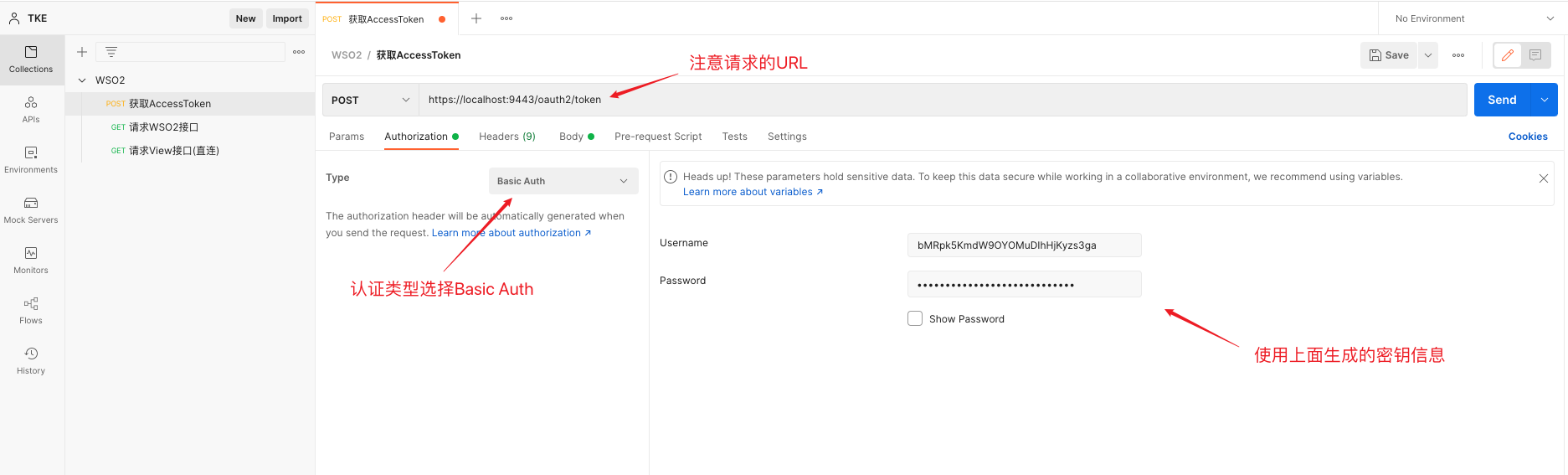

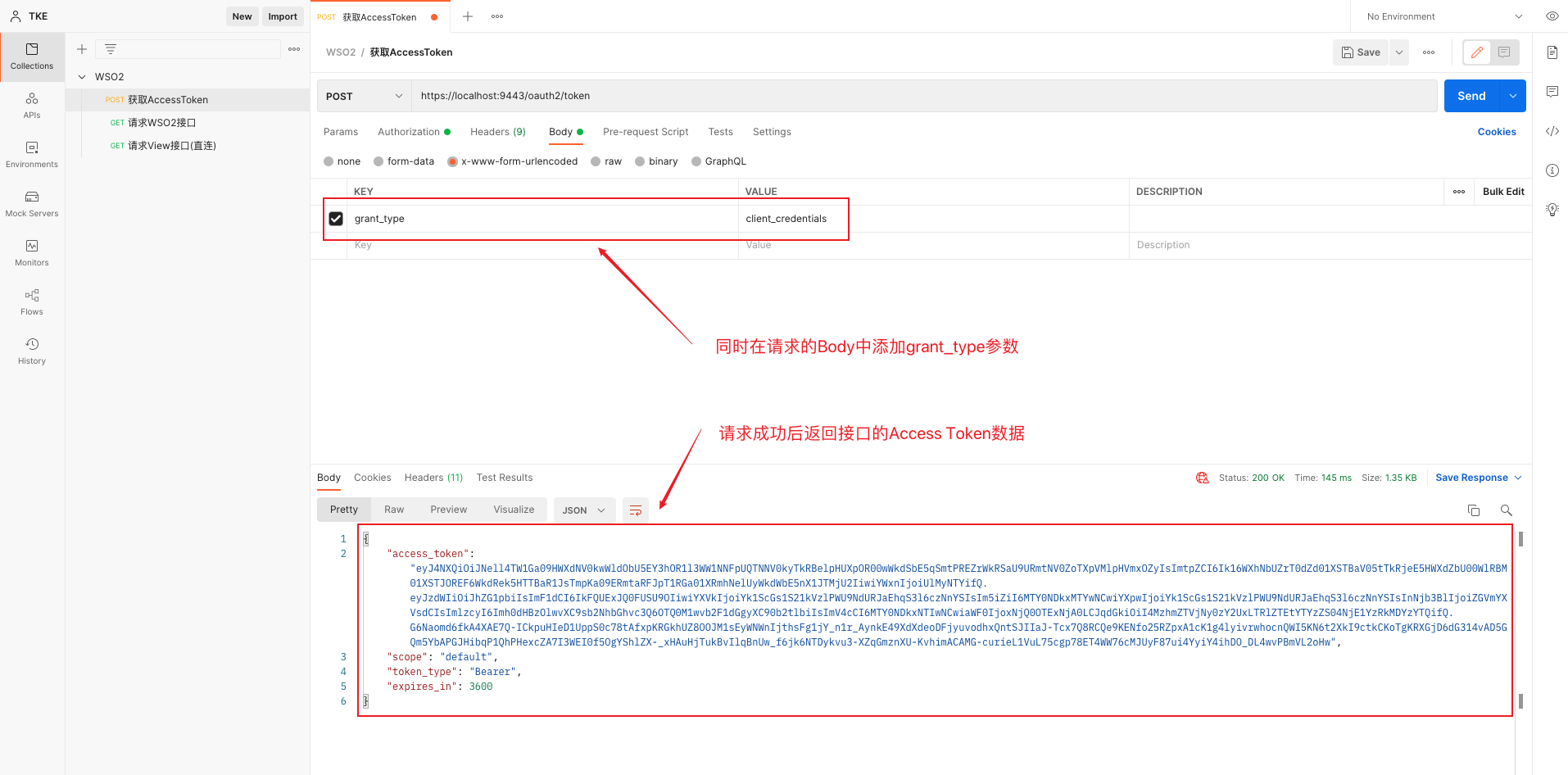

1.打开调试工具,使用 POST 方法请求URL: https://localhost:9443/oauth2/token
2.认证方式选择 Basic Auth,账号密码填写 OAuth2 的 KeySecret 在请求的 Body 中添加 grant_type:client_credentials 信息

请求API(WSO2直连)

1.打开调试工具,使用 POST 方法请求URL: https://localhost:8243/demo/1.0
2.认证方式选择 Bearer Token,Token内容使用上面获取的 access_token

请求API(View中使用WSO2)

访问你的URL如: https://localhost:8243/wso2.php
